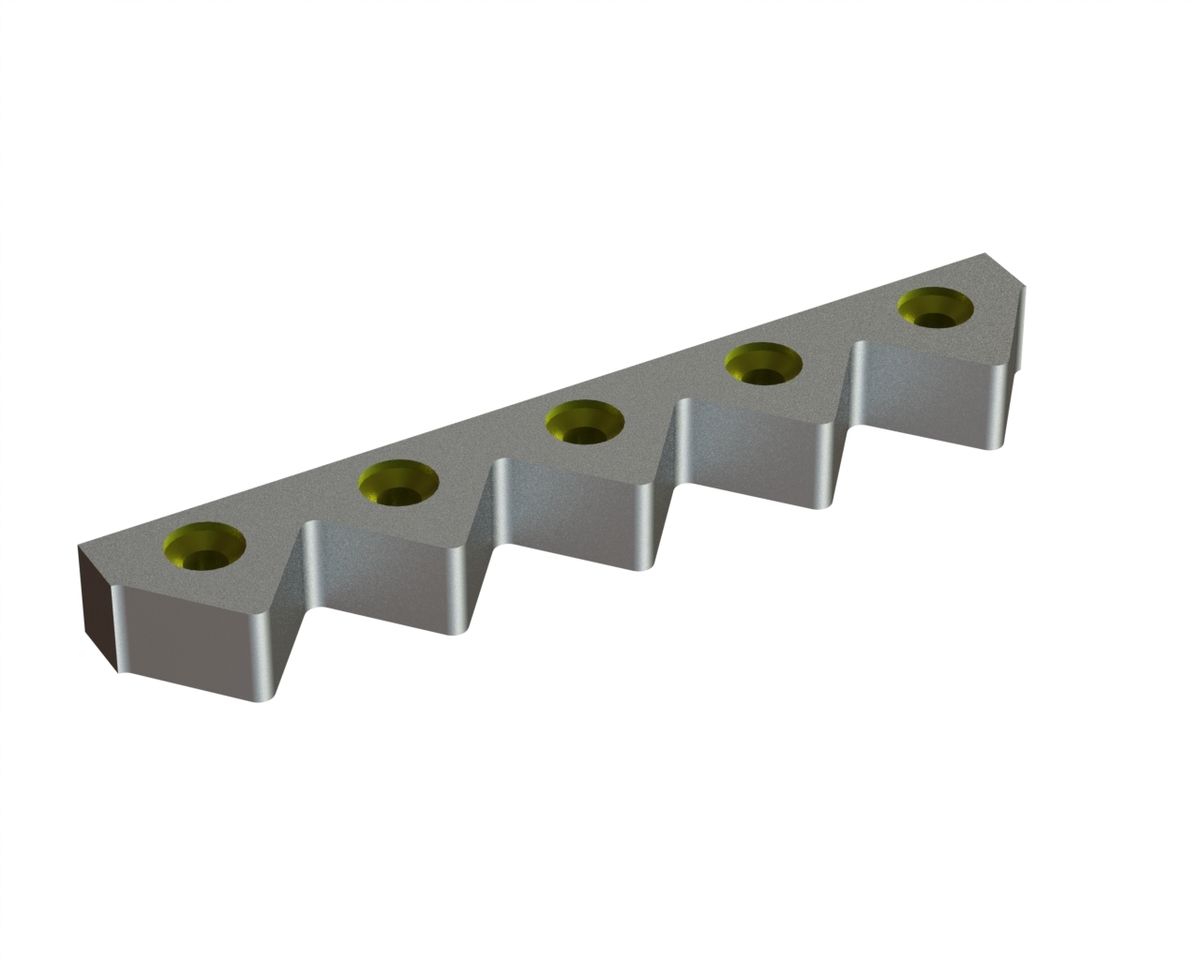

Counter knife 400x71x40 Eco Line

W-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMED0400-W00-E

Order now
delivery time on request
Detailed description

Counter knife GMED0400-W00-E by CUTMETALL for crushing machines by Eldan Recycling.



Compatibility with machines:

This item is excellently suitable for crushers, shredders, pre-shredders, and post-shredders from Eldan Recycling.



Cutting performance and durability:

Through the use of particular materials and the variance in the cutting geometry, the cutting tool can be configured to the operational scenario in terms of throughput and lifetime.

This alloyed tool steel is 5 % softer than the X-version and is therefore less sensitive to fractures. This makes this W-option applicable for utilizations where impurities are present in the input. In return, however, this variant has a shorter longevity.

Due to the through-hardening process, there is a uniform hardness from the edge layer to the core. This ensures consistent wear over the tool life of the counter knife.

Hardfacing or welding on this variation should be avoided, as the structure will otherwise be significantly weakened. This can lead to breakages and machine damage.



General characteristics:

The subsequent measures are available: 399.8mm length, 71mm width, 40mm height.

As part of our Eco Line, the counter knife offers a lower-priced alternative to the Premium Line.

Replacement and Wear Parts for Eldan Recycling – Excellence from CUTMETALL

Discover at CUTMETALL, your specialist for high-quality replacement and wear parts, a wide range of customized components for shredders, granulators, and raspers of the renowned brand Eldan Recycling. Our products, developed to optimize your Eldan Recycling machines, ensure not only efficiency but also the longevity of your equipment. We offer the right solution for every model – if you cannot find your specific model, simply contact us. Our experienced team will provide you with immediate support.

Why Choose CUTMETALL for Your Eldan Equipment?

The CUTMETALL own brands stand for quality and precision. Our replacement and wear parts are the result of years of experience and continuous product development, to ensure the best fit and highest performance for your Eldan Recycling machines:

  • Eldan Super Chopper (SC)
  • Eldan Multi Purpose Rasper (MPR)
  • Eldan Heavy Granulator (HG)
  • Eldan Heavy Rasper (HR)
  • Eldan Fine Granulator (FG)
  • Eldan Heavy Pre Granulator (HPG)

Our experts are happy to advise you on extending the service life and durability of your machines, and help you find the optimal solution for your requirements.

Benefits with CUTMETALL

More than just replacement: CUTMETALL products not only enhance the performance of your machines but also contribute to significant cost reductions. By using our process-optimized and durable components, you increase the economic efficiency and efficiency of your recycling processes.

As your partner in the shredding and recycling industry, CUTMETALL stands for innovative solutions specifically tailored to your needs. Discover our range now and learn how we can help you improve the performance and longevity of your Eldan Recycling machines.

Technical specifications
suitable to manufacturer
Eldan Recycling A/S
production line
Eco Line = CUTMETALL foreign production
knife features
slightly increased wear / increased toughness
article group
counter knife | shredder bed knife
length
399.80
width
71.00
height
40.00
weight in kg
5.50
material | hardness
Cr12MoV | 54-56 HRC
