Counter knife 557x175x39 Eco Line

version 60, X-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMBA0557-X01-E

Order now
delivery time on request
Detailed description

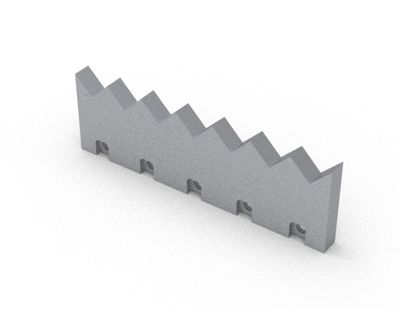

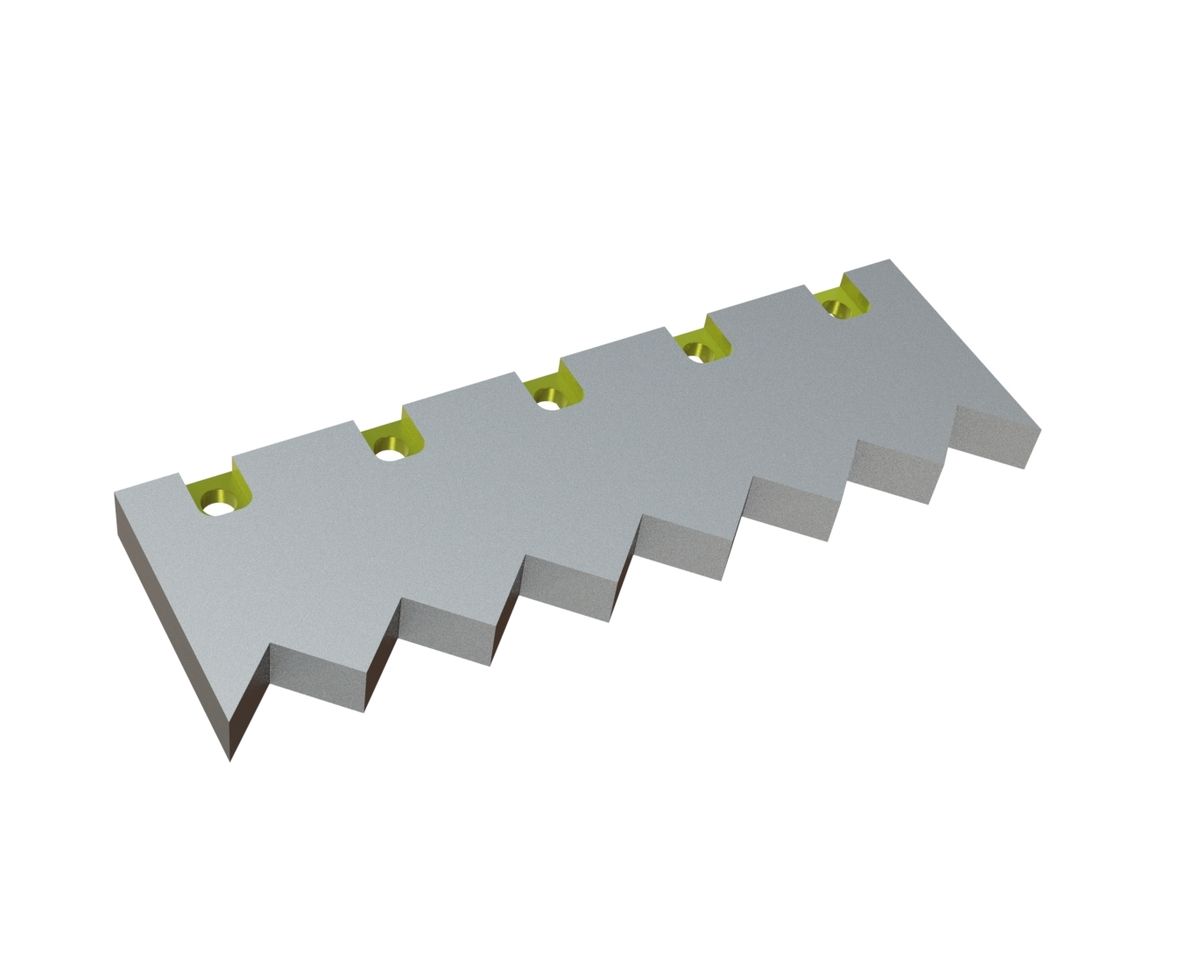

Counter knife GMBA0557-X01-E by CUTMETALL for crushing machines by Bano Recycling s.r.l.



Compatibility with machines:

For crushers, shredders, pre-shredders and post-shredders by the producer Bano Recycling s.r.l. the counter knife is perfectly applicable.



Cutting performance and durability:

The wear and tear behaviour and thus also the lifetime of the product can be impacted by the material and the shape. This means that the efficiency can be well adjusted to the break down application.

The counter knife is made of tool steel and is thus assigned to our X-version, which is the standard variation in most break down applications.

Here you are offered a beneficial compromise between resistance to wear and toughness.

In this variant, the spare parts are hardened from the edge layer to the core. This means that the counter knife wears steadily over its lifetime.

To avoid breakage and machine damage, it is crucial not to armour or weld on this type, as it will acutely weaken the structure.



Fastening in the machine:

This counter knife can be combined with knives and cutters with a length and width of 60mm. Due to the broad range of recycling machines, further configuration variants are possible.

When fitting the counter knife, please assure that it is only fitted to knife holders or knife crossbars with an intact contact surface in order to prevent breakage.



General characteristics:

The dimensions of the component are 557.4mm in length, 175mm in width and 39mm in height.

Since the counter knife is part of our Eco Line, the product offers a favourable option to the Premium Line.

Technical specifications
suitable to manufacturer
Bano Recycling s.r.l.
production line
Eco Line = CUTMETALL foreign production
knife features
medium wear / medium toughness
article group
counter knife | shredder bed knife
length
557.40
width
175.00
height
39.00
weight in kg
24.51
material | hardness
Cr12MoV | 57-59 HRC
Hersteller
Bano
