Counter knife external 351x100x25 Premium Line

version 43, W-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMFS0351-W0A

Order now
delivery time on request
Detailed description

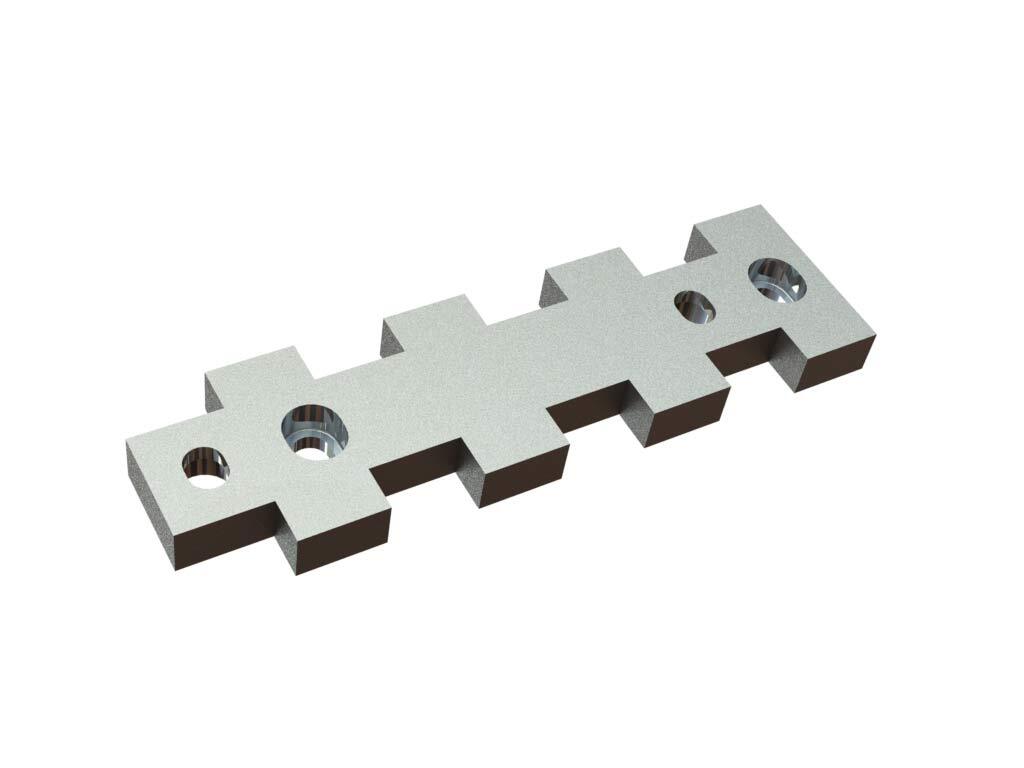

Counter knife GMFS0351-W0A from CUTMETALL for recycling machines



Cutting performance and durability:

The wear behaviour and thus also the knife life can be impacted by the material and the cutting geometry. This means that the performance can be well customised to the application scenario.

Knives in this W-variant are 5% softer in comparison to the X-version and have a lower susceptibility to impurities. This part is produced out of alloyed tool steel, which makes it perfect for demanding break down applications. However this option has a shorter durability.

In this option, the spare parts are hardened from the edge layer to the core. This means that the counter knife wears evenly over its lifetime.

We highlight that this variation should not be armoured or welded on. This has a negative effect on the material structure of the counter knife, which can subsequently lead to breakage and machine damage.



Fastening in the machine:

The counter knife is mounted external on the cutting device. The other parts of the set can be found under the accessories.

The component is suitable for knives and also cutting crowns with the length and width of 43mm. With regard to the diverse range of models, various configuration variations can be realised.

When attaching the counter knife, please assure that it is only fitted to knife holders or knife crossbars with an intact contact surface in order to prevent breakage.



General characteristics:

The measures of this item are 351mm in length, 100mm in width and 28mm in height.

As this counter knife belongs to the Premium Line, the cutting tool shown is exclusively made in German manufacturing.

Technical specifications
production line
Premium Line = knives Made in Germany
knife features
slightly increased wear / increased toughness
article group
counter knife | shredder bed knife
length
351.00
width
100.00
height
25.00
weight in kg
4.80
material | hardness
AISI D2 | DIN 1.2379 | 54-56 HRC
