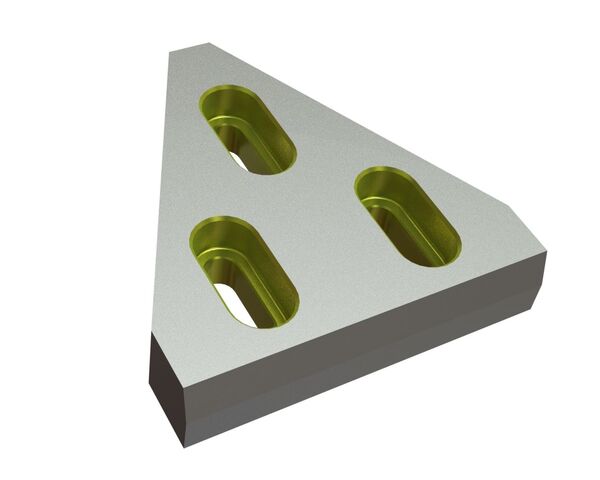

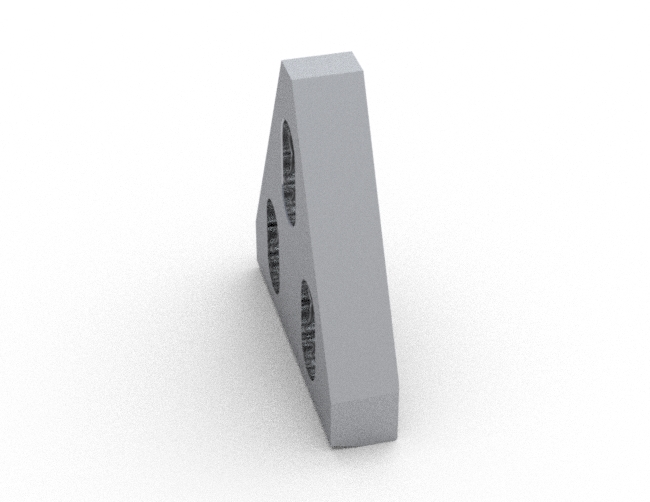

Counter knife middle 245x233x50 Eco Line

W9-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMED0245-99M-E

select version
select version

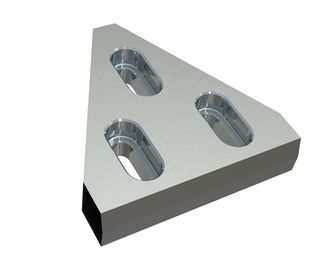

Counter knife middle 245x233x50 Premium Line
W9-version
GMED0245-99M
delivery time on request
Counter knife middle 245x233x50 Eco Line
W9-version
GMED0245-99M-E
delivery time on request
Order now
delivery time on request
Detailed description

Counter knife GMED0245-99M-E from CUTMETALL for recycling machines from Eldan Recycling



Compatibility with machines:

  • Eldan SC 1412
  • Eldan SC 2118
  • Eldan SC
  • Super Chopper



Cutting performance and durability:

The wear behaviour and thus also the service life can be impacted by the material and the shape. This means that the efficiency can be well customised to the application scenario.

Comparatively, the W9-variation wears more quickly than the X-option due to its lower hardness. Also the insensitivity to impurities and the high toughness of the W9-variant is a remarkable feature compared to the X-version.

Items of this version are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is even in relation to its tool life.

It is imperative to avoid the welding on or hardfacing of cutting tools of this variant, as the structure will otherwise be fundamentally impaired. Consequently, breakage and machine damage may occur.



Fastening in the machine:

The counter knife is mounted centered on the cutting device. The other parts of this set can be found under the accessories.

When attaching the counter knife, please assure that it is only adapted to knife holders or knife crossbars with a flat contact surface in order to prevent breakage.



General characteristics:

The counter knife is 245.3mm long, 233mm wide and 50mm high.

As the counter knife is part of our Eco Line, this product is a cost-effective alternative to the Premium Line.

Replacement and Wear Parts for Eldan Recycling – Excellence from CUTMETALL

Discover at CUTMETALL, your specialist for high-quality replacement and wear parts, a wide range of customized components for shredders, granulators, and raspers of the renowned brand Eldan Recycling. Our products, developed to optimize your Eldan Recycling machines, ensure not only efficiency but also the longevity of your equipment. We offer the right solution for every model – if you cannot find your specific model, simply contact us. Our experienced team will provide you with immediate support.

Why Choose CUTMETALL for Your Eldan Equipment?

The CUTMETALL own brands stand for quality and precision. Our replacement and wear parts are the result of years of experience and continuous product development, to ensure the best fit and highest performance for your Eldan Recycling machines:

  • Eldan Super Chopper (SC)
  • Eldan Multi Purpose Rasper (MPR)
  • Eldan Heavy Granulator (HG)
  • Eldan Heavy Rasper (HR)
  • Eldan Fine Granulator (FG)
  • Eldan Heavy Pre Granulator (HPG)

Our experts are happy to advise you on extending the service life and durability of your machines, and help you find the optimal solution for your requirements.

Benefits with CUTMETALL

More than just replacement: CUTMETALL products not only enhance the performance of your machines but also contribute to significant cost reductions. By using our process-optimized and durable components, you increase the economic efficiency and efficiency of your recycling processes.

As your partner in the shredding and recycling industry, CUTMETALL stands for innovative solutions specifically tailored to your needs. Discover our range now and learn how we can help you improve the performance and longevity of your Eldan Recycling machines.

Technical specifications
suitable to manufacturer
Eldan Recycling A/S
suitable to machine
ED-SC1412 Eldan Super Chopper SC 1412 Eldan SC 2118 Eldan SC | Super Chopper ED-SC2118 Eldan Super Chopper SC 2109
production line
Eco Line = CUTMETALL foreign production
knife features
higher wear / higher toughness
article group
counter knife | shredder bed knife
length
245.30
width
233.00
height
50.00
weight in kg
11.40
material | hardness
AISI H13 | DIN 1.2344 | 54-56 HRC AISI D2 | DIN 1.2379 | 54-56 HRC
