Counter knife middle 484x100x25 Premium Line

version 43, W-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMFS0484-W0M

Order now
delivery time on request
Detailed description

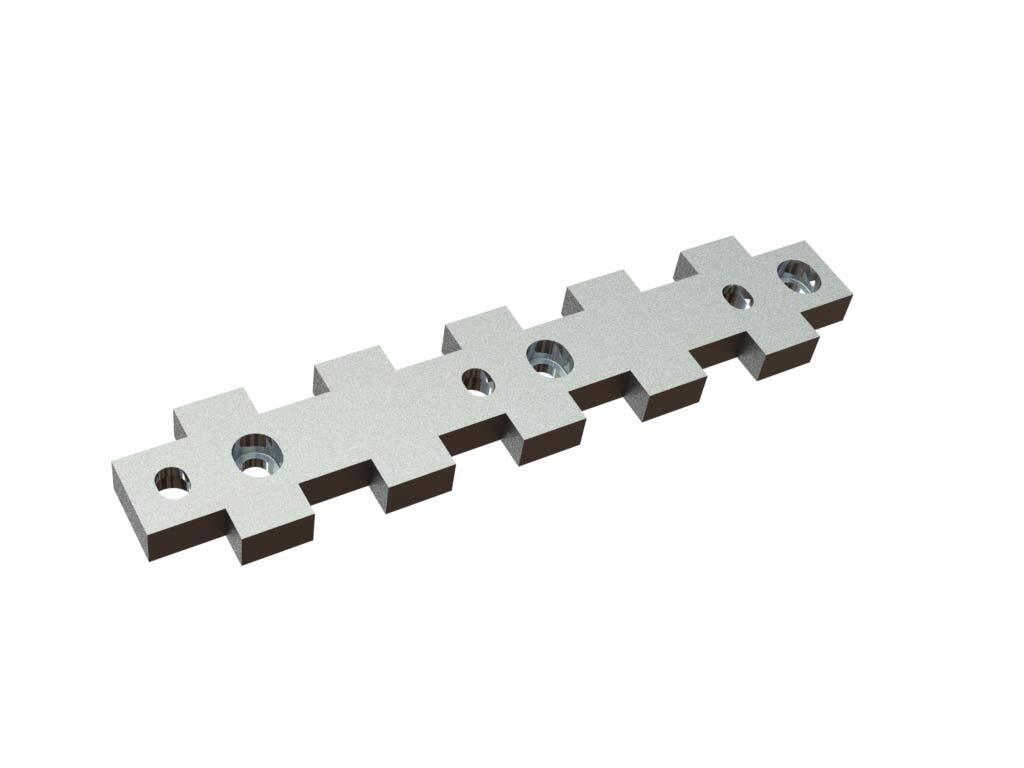

Counter knife GMFS0484-W0M from CUTMETALL for crushing machines



Cutting performance and durability:

The wear and tear behaviour and thus also the service life can be influenced by the material and the shape. This means that the performance can be well configured to the break down application.

Knives in this W-option are 5% softer in comparison to the X-variation and have a lower susceptibility to impurities. The spare is manufactured out of alloyed tool steel, which makes it ideal for demanding application scenarios. However this variant has a shorter operating time.

In this version, the spare parts are hardened from the edge layer to the core. This means that the counter knife wears evenly over its lifespan.

However, this version must not be armoured or welded on, as it negatively influences the structure of the items. Subsequently, fractures and machine damage are possible.



Fastening in the machine:

The counter knife is mounted centered on the cutting device. The other parts of this set can be found under the accessories.

This item suits knives and cutting crowns with a length and width of 43mm. Due to the wide range of shredding models, further configuration variations may be available.

It is imperative that the counter knife is only affixed to knife holders or knife crossbars with intact supports, as otherwise the attachment may cause breakage.



General characteristics:

The measurements of the counter knife are 484mm long, 100mm wide and 28mm high.

As part of the Premium Line, this counter knife is produced in Germany.

Technical specifications
production line
Premium Line = knives Made in Germany
knife features
slightly increased wear / increased toughness
article group
counter knife | shredder bed knife
length
484.00
width
100.00
height
25.00
weight in kg
6.00
material | hardness
AISI D2 | DIN 1.2379 | 54-56 HRC
