Counter knife middle 502x100x25 Premium Line

version 36, W-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMFS0502-W0M

Order now
delivery time on request
Detailed description

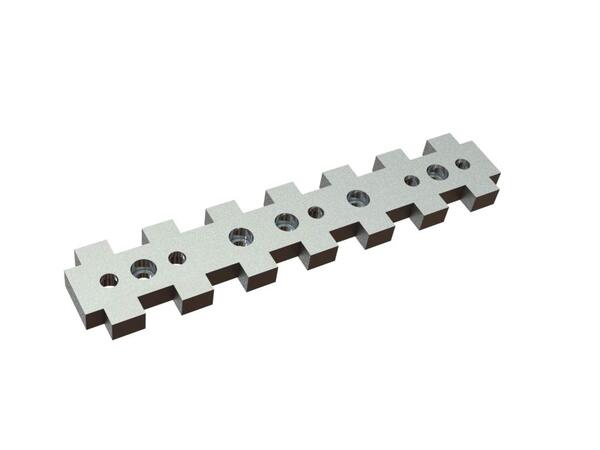

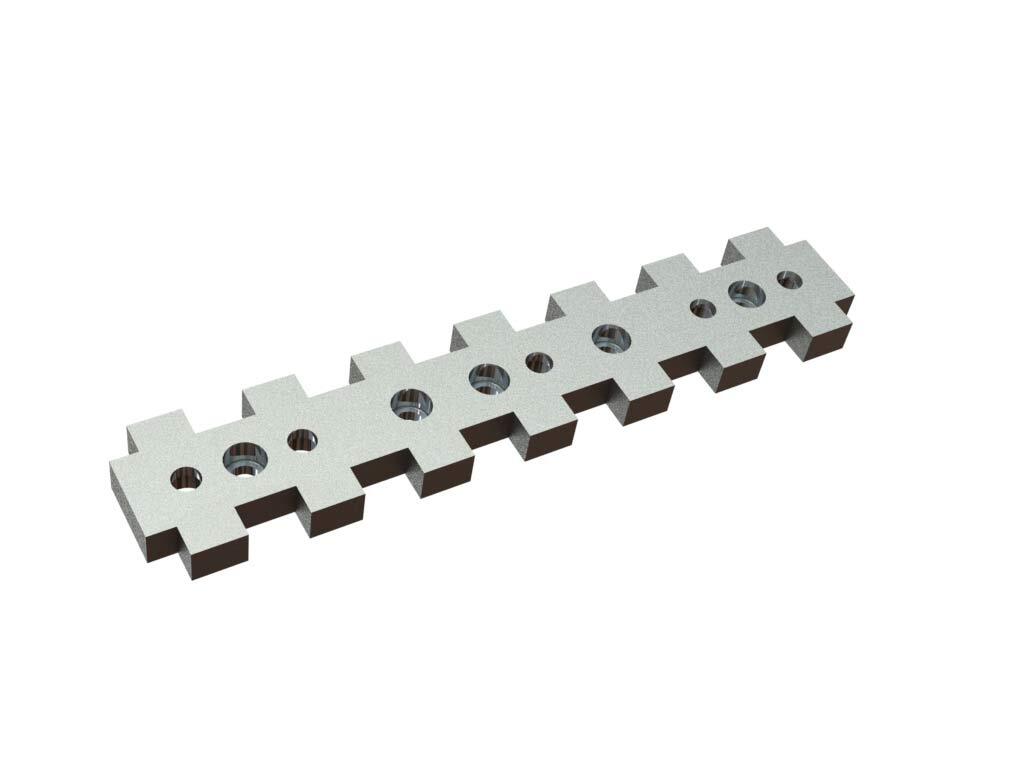

Counter knife GMFS0502-W0M from CUTMETALL for crushing machines



Cutting performance and durability:

The wear behaviour and thus also the lifespan can be influenced by the material and the shape. This means that the efficiency can be well adapted to the break down application.

This alloyed tool steel is 5 % softer than the X-variant and is therefore less susceptible to fractures. This makes this W-variation suitable for applications where impurities are present in the input. In return, however, this option has a shorter tool life.

Due to the through-hardening process, there is a consistent hardness from the edge layer to the core. This ensures persistent wear over the lifetime of the counter knife.

However, this version must not be armoured or welded on, as it negatively impacts the structure of the products. Subsequently, fractures and machine damage are possible.



Fastening in the machine:

The counter knife is mounted centered on the cutting device. The other parts of the set can be found under the accessories.

The product suits knives and cutting crowns with a length and width of 36mm. Due to the broad range of shredding machines, further configuration variations may be available.

When attaching the counter knife, please assure that it is only applied to knife holders or knife crossbars with an ideal contact surface in order to prevent breakage.



General characteristics:

This item measures 502mm in length, 100mm in width and 28mm in height.

This counter knife belongs to the Premium Line, which is manufactured exclusively in Germany.

Technical specifications
production line
Premium Line = knives Made in Germany
knife features
slightly increased wear / increased toughness
article group
counter knife | shredder bed knife
length
502.00
width
100.00
height
25.00
weight in kg
6.70
material | hardness
AISI D2 | DIN 1.2379 | 54-56 HRC
