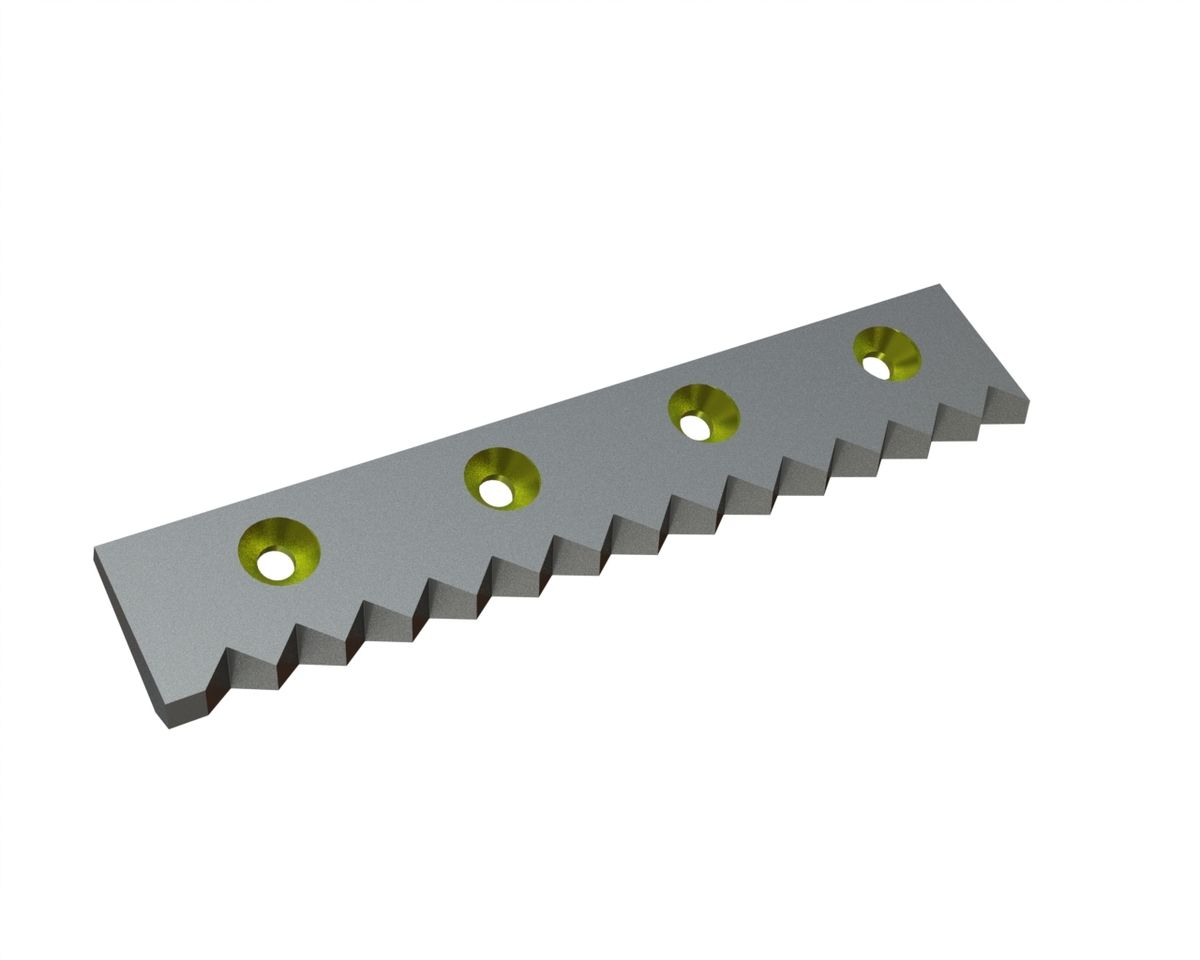

Counter Knife right 509x99x30 Eco Line

Counter knife GMWM0509-X1R-E from CUTMETALL for recycling machines from Weima Maschinenbau GmbH

Compatibility with machines:

Cutting performance and durability:

Through the use of particular materials and the variance in the cutting geometry, the item can be customised to the break down application in terms of throughput and service life.

This counter knife is made of tool steel and is thus assigned to our X-variant, which is the standard variation in most application areas.

This combines both toughness and wear insensitivity in a balanced ratio.

Due to the through-hardening process, there is a uniform hardness from the edge layer to the core. This ensures consistent wear over the tool life of the counter knife.

However, this option must not be armoured or welded on, as it negatively influences the structure of the products. Consequently, fractures and machine damage are possible.

Fastening in the machine:

The counter knife is mounted right on the cutting device. The other parts of the set can be found under the accessories.

This component fits knives and cutting crowns with a length and width of 40mm. Due to the wide range of shredding models, other configuration variations may be available.

When installing the counter knife, please assure that it is only adapted to knife holders or knife crossbars with a flat contact surface in order to prevent breakage.

General characteristics:

The dimensions of the cutting tool are 509mm in length, 99mm in width and 30mm in height.

Since the counter knife is part of our Eco Line, the product offers a favourable alternative to the Premium Line.
