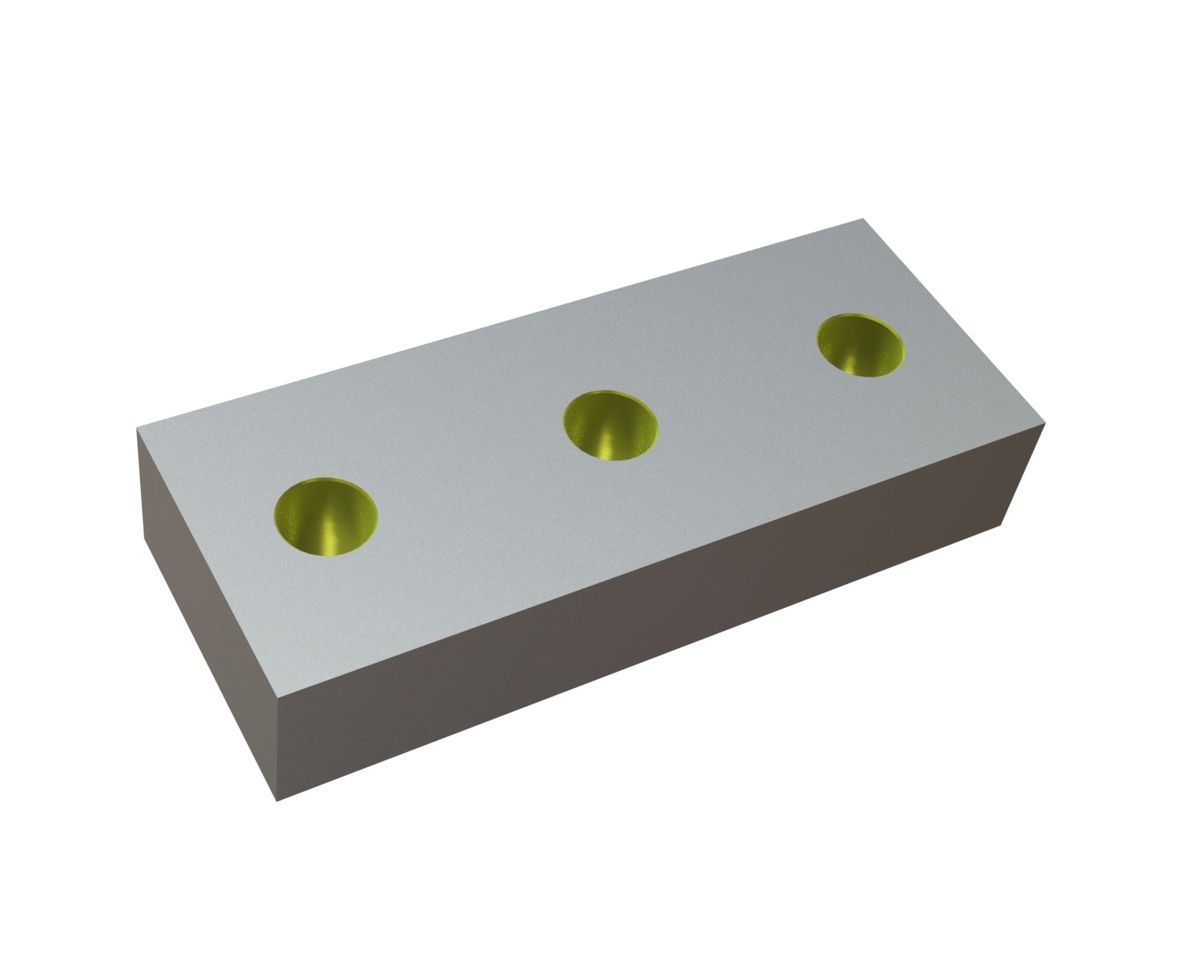

Knife 195x78x38 Eco line for Artech Recyclingtechnik GmbH

Knife 195x78x38 Eco line

3 holes, X-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
HMAT0195-XF1-E

Order now
delivery time on request
Detailed description

Knife HMAT0195-XF1-E from CUTMETALL for recycling machines from Artech Recyclingtechnik GmbH



Compatibility with machines:

For crushers, shredders, pre-shredders and post-shredders by the producer Artech Recyclingtechnik GmbH the knife is ideally applicable.



Cutting performance and durability:

Through the use of different materials and varying the cutting geometry, the spare part can be configured to the area of application in terms of throughput and service life.

This X-option knife is made of tool steel and corresponds to the standard variant in most application areas. Consequently, it has a medium hardness.

Here we offer you a suitable combination of resistance to wear and tear and toughness at the same time.

Items of this variation are hardened throughout, which means that this hardness remains the same from the edge to the core. Due to that the wear is even in relation to its tool life.

We emphasise that this version should not be armoured or welded on. This has a negative impact on the material structure of the knife, which can subsequently lead to breakage and machine damage.



General characteristics:

The measures of the knife are 195mm long, 78mm wide and 38mm high.

Since the knife is part of our Eco Line, the item offers a favourable alternative to the Premium Line.

Technical specifications
suitable to manufacturer
Artech Recyclingtechnik GmbH
production line
Eco Line = CUTMETALL foreign production
knife features
medium wear / medium toughness
article group
knives | knife | blade
length
195.00
width
78.00
height
38.00
weight in kg
4.15
material | hardness
Cr12MoV | 57-59 HRC
