Screen basket 487 wide, sheet thickness t=6 Hardox for Herbold Meckesheim GmbH Herbold SML 60/100

Screen basket 487 wide, sheet thickness t=6 Hardox

hole Ø15, bar width 6
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SKHD0487-AR15

Order now
delivery time on request
Detailed description

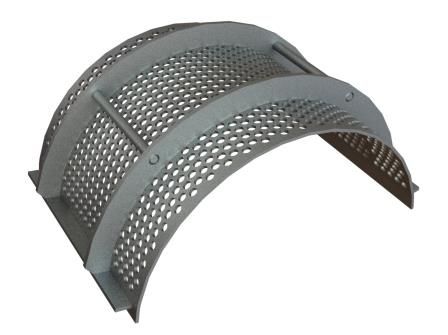

Screen basket SKHD0487-AR15 from CUTMETALL for shredders from Herbold Meckesheim



Compatibility with machines:

The screen basket can be inserted with an exact fit in the Herbold SML and Herbold SMS series from Herbold Meckesheim.



Performance and screening behaviour:

In terms of throughput and lifetime, the efficiency of the screen basket can be configured by influencing it with different materials and a variance in geometry.

This insensitive steel of the A-variant provides a long tool life. As it is less sensitive to wear due to the extra hardness, it is optimal for using it in demanding applications.

To enable the screen basket to process the input material reliably, this screen basket has round holes. Additionally, the diameter of each hole is 15mm and the spaces between the cutouts are 6mm each.



General characteristics:

As the screen basket does not require any additional upgrades, the screen basket has a sheet thickness of over 6mm. On top of that, the width of the spare part shown measures 487mm.



Alternative articles:

At the moment, the article presented is only available in the above-named variation. But you already have another material in mind? Please get in touch now! Your team of experts at CUTMETALL will make the desired screen basket for you after we have checked the possibility of using a different material in production.

Technical specifications
suitable to manufacturer
Herbold Meckesheim GmbH
suitable to machine
Herbold SML 60/100 Herbold SML Herbold SML 60/145
production line
Hardox
article group
screens I screen baskets | granulator screen | shredder screen
length
487.00
width
900.40
height
6.00
weight in kg
23.80
screen perforation - performance
round perforation
