Screen basket 594 wide, sheet thickness t=10 for Herbold Meckesheim GmbH Herbold SMS 45/60

Screen basket 594 wide, sheet thickness t=10

hole 50x50, bar width 15, Hardox
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SKHD0594-AT50

Order now
Currently 5 in stock
Detailed description

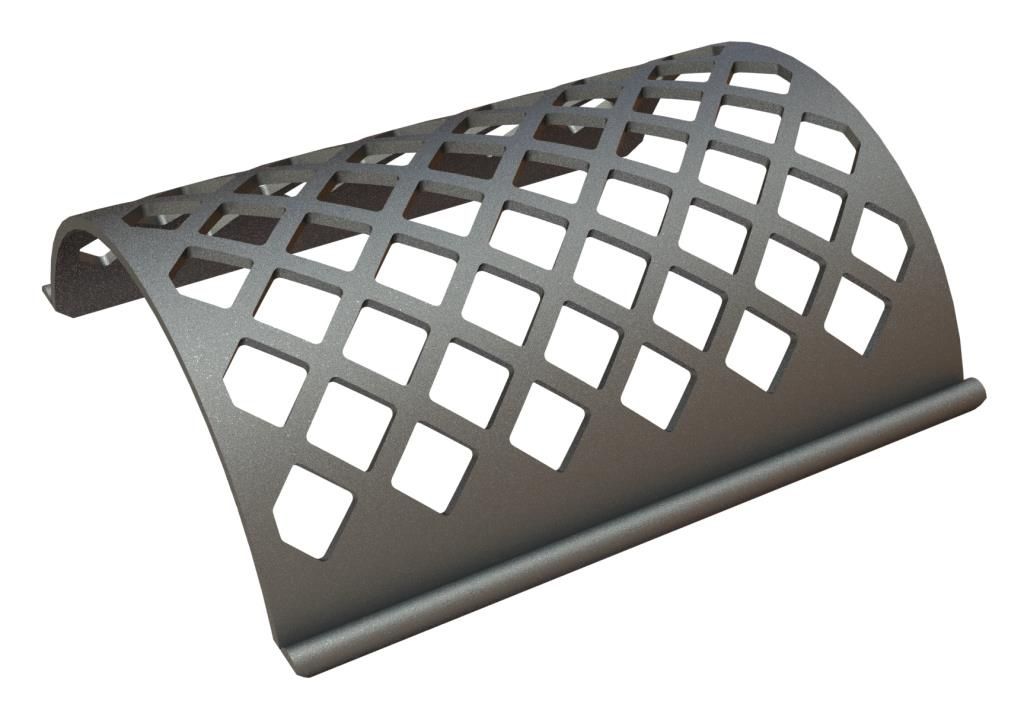

Screen basket SKHD0594-AT50 from CUTMETALL for recycling machines from Herbold Meckesheim



Compatibility with machines:

This screen basket is in the first place designed for the Herbold SMS series from Herbold Meckesheim.



Performance and screening behaviour:

Both the shape and the material used have a significant impact on the insensitivity and lifetime of the screen basket.

This resistant steel of the A-variant guarantees a long service life. As it is less sensible to wear due to the additional hardness, it is ideal for use in demanding operational scenarios.

This screen basket is provided with diamond-rhombic cutouts. In this case, this means that the cutout shapes are all rhombic and parallel to each other but the length of the sides varies. This means that the size of the holes cannot be clearly defined. Between the perforations the space is 15mm.



General characteristics:

To meet the application requirements, the screen basket has a sheet thickness of 10mm. Moreover, the spare part with a width of 594mm is used in the shredder.



Alternative articles:

The product is only available in one version so far. Nevertheless, contact us now! After we have investigated together wether it is possible to produce the screen basket in a desired material option, we will have the ideal item made for your exact needs.

Technical specifications
suitable to manufacturer
Herbold Meckesheim GmbH
suitable to machine
Herbold SMS 45/60 Herbold SMS
production line
Hardox
article group
screens I screen baskets | granulator screen | shredder screen
length
594.00
width
519.50
height
194.20
weight in kg
22.00
screen perforation - performance
square diamond perforation
