Screen basket 594 wide, sheet thickness t=5 for Weima Maschinenbau GmbH

Screen basket 594 wide, sheet thickness t=5

mixed hole Ø20/Ø25, 450 HB steel
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SKWM0594-AD2025

Order now
delivery time on request
Detailed description

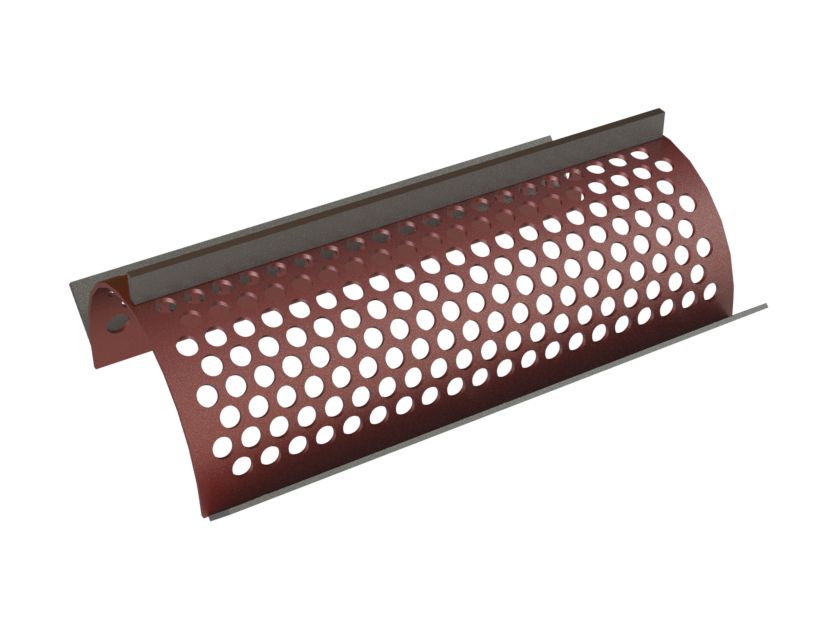

Screen basket SKWM0594-AD2025 from CUTMETALL for recycling machines from Weima Maschinenbau GmbH



Compatibility with machines:

This screen basket is primarily designed for the Weima WL series from Weima Maschinenbau GmbH.



Performance and screening behaviour:

Both the geometry and the material used have a decisive effect on the insensitivity and tool life of the screen basket.

This insensitive steel of the A-option provides a long service life. As it is less sensible to wear due to the extra hardness, it is optimal for using it in demanding applications.

The perforated surface of this screen basket is divided into two parts. One half has a hole size of over 20mm and the other half 25mm. Due to the mixed perforations, the margin widths are also mixed. The margin width is 7.5mm on one side and 8.5mm on the other.



General characteristics:

The screen basket with the width of 594mm secures a suitable installation in the shredding machines described. Moreover, the product with 5mm sheet thickness convinces with its performance.



Alternative articles:

In the dimensions shown, we currently have this article only in this version. Do you already have certain conditions in mind for the material? Contact us at any time! Our team of experts at CUTMETALL will investigate the possibility of other material variations with you and take care of the realization immediately.

Technical specifications
suitable to manufacturer
Weima Maschinenbau GmbH
production line
Hardox
article group
screens I screen baskets | granulator screen | shredder screen
length
594.00
width
4633.00
height
5.00
weight in kg
13.30
