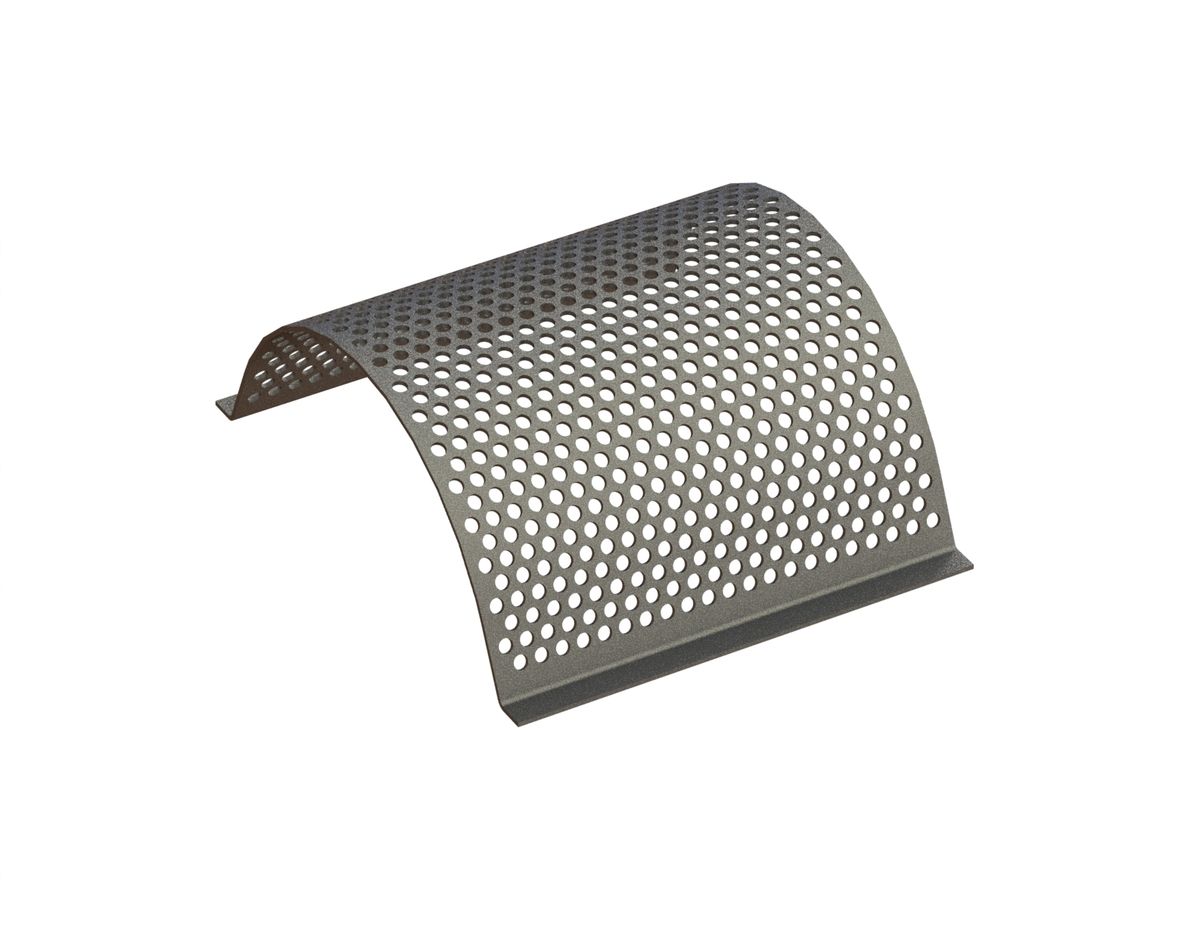

Screen plate 397 wide, sheet thickness t=4

Screen plate SYMG0397-1R05 from CUTMETALL for recycling machines from MG Recycling

Compatibility with machines:

Performance and screening behaviour:

The performance of the screen plate depends primarily on both the version and the shape.

In this context, this product in the 1-variant offers a price advantage due to the use of unalloyed steel.

For reliable screening of the input material, the perforations of the screen plate are round and have a diameter of 5mm each. The width of the margin between them is 2.5mm each.

General characteristics:

As the screen plate does not require any additional upgrades, the screen plate has a sheet thickness of over 4mm. On top of that, the width of the article presented measures 397mm.

Alternative articles:

Currently, the spare part shown is only available in the above-mentioned option. But you already have another material in mind? You are welcome to get in touch now! Our CUTMETALL sales team will make the desired screen plate for you after we have checked the possibility of using an alternate material in production.
