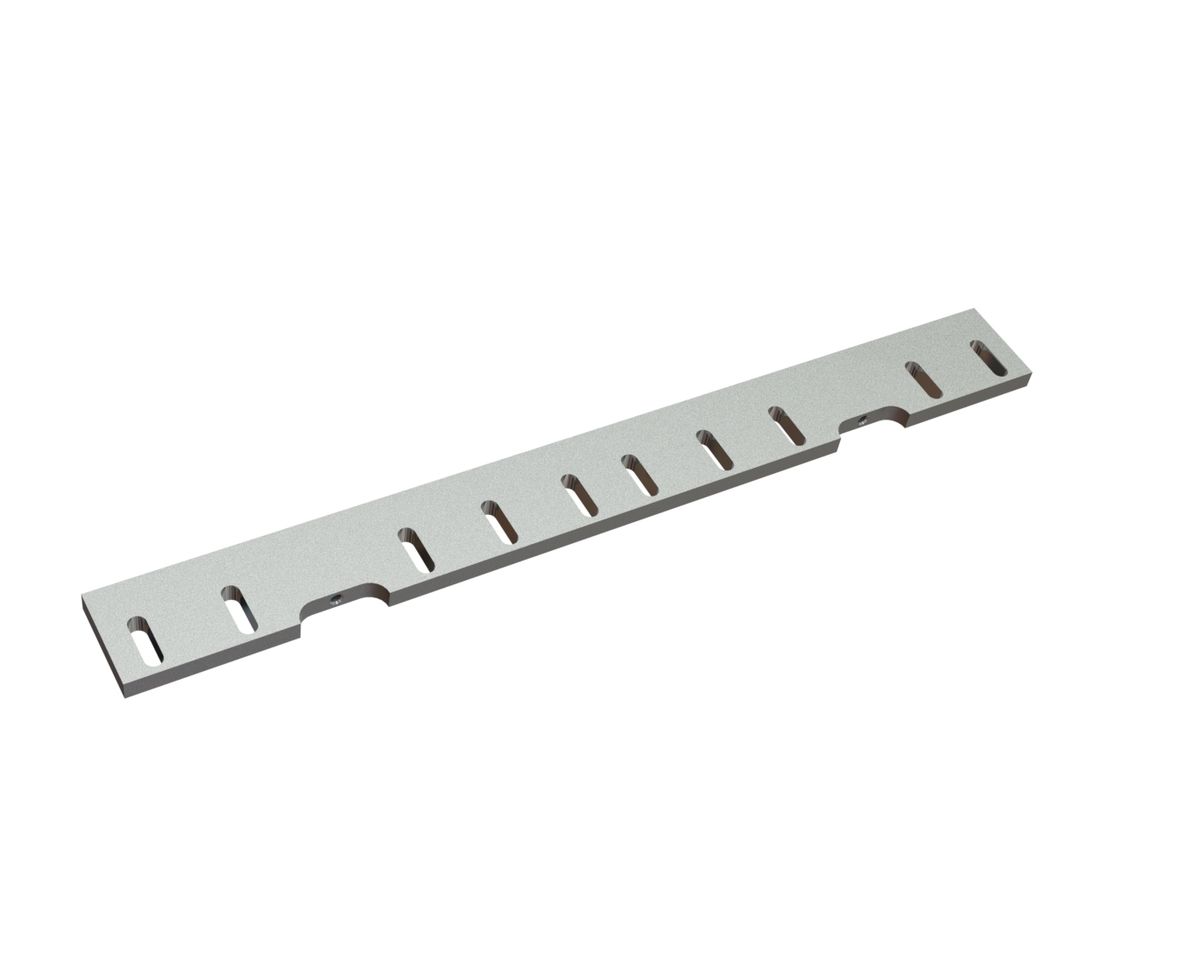

Stator knife 1038x110x22 Premium Line

Stator knife SMDR1038-X01 by CUTMETALL for crushing machines by Dreher Maschinenbau.

Compatibility with machines:

Cutting performance and durability:

The product can be matched to the application area, depending on the particular materials and varying cutting geometry.

The X-variant of this component is made of tool steel. This option has a medium hardness and lays between the W- and Y-options.

Here you are offered a good compromise between resistance to wear and toughness.

Cutting tools of this variation are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is homogenous in relation to its tool life.

However, this version must not be armoured or welded on, as it negatively impacts the structure of the products. Subsequently, fractures and machine damage are possible.

Fastening in the machine:

When attaching, please also assure that the support of the knives is in an undamaged condition, as otherwise breakage may occur.

General characteristics:

The spare part measures 1038mm in length, 110mm in width and 22mm in height.

The inclination of the cutting edge is 90°.

As part of the Premium Line, this stator knife is manufactured in Germany.
