Stator knife 388x100x28 Premium Line for Herbold Meckesheim GmbH

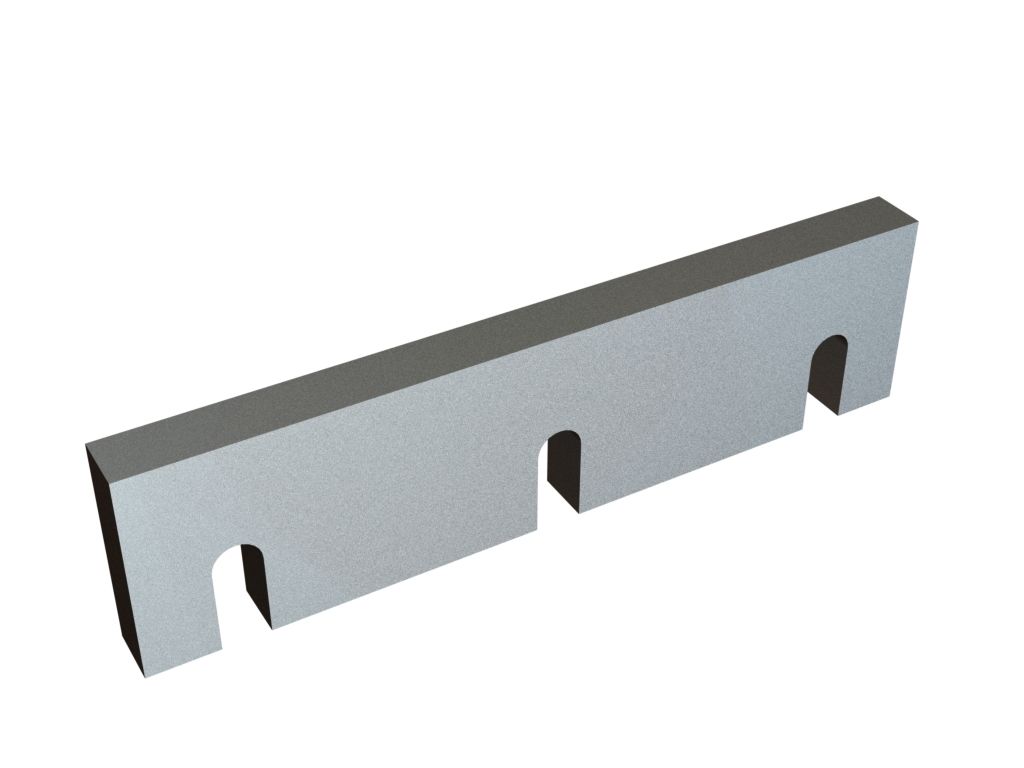

Stator knife 388x100x28 Premium Line

3 slots, blade 90°, Y-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SMHD0388-Y00

Order now
delivery time on request
Detailed description

Stator knife SMHD0388-Y00 by CUTMETALL for shredding machines by Herbold Meckesheim.



Compatibility with machines:

For cutting millses and granulators by the manufacturer Herbold Meckesheim the stator knife is ideally fitting.



Cutting performance and durability:

The cutting geometry and the material used for constructing have a significant influence on the resistance and lifespan.

In the Y-option, this cutting tool is made of alloyed tool steel. The stator knife in this variant is approx. 5% harder than the X-variation, which results in a longer operating time. Nonetheless, the texture is also more brittle. Due to that it can be more fragile if there is a high level of impurities.

Due to the through-hardening process, there is a uniform hardness from the edge layer to the core. This ensures consistent wear over the tool life of the stator knife.

We underline that this version should not be armoured or welded on. This has a negative effect on the material structure of the stator knife, which can subsequently lead to breakage and machine damage.



General characteristics:

This stator knife is 388mm long, 100mm wide and 28mm high.

Its cutting edge is inclined at 90°.

As this stator knife belongs to the Premium Line, the item is produced exclusively in Germany.

Technical specifications
suitable to manufacturer
Herbold Meckesheim GmbH
production line
Premium Line = knives Made in Germany
knife features
lower wear / lower toughness
article group
stator knife | bed knife | static knife
length
388.00
width
100.00
height
28.00
weight in kg
7.57
material | hardness
AISI D2 | DIN 1.2379 | 60-62 HRC
