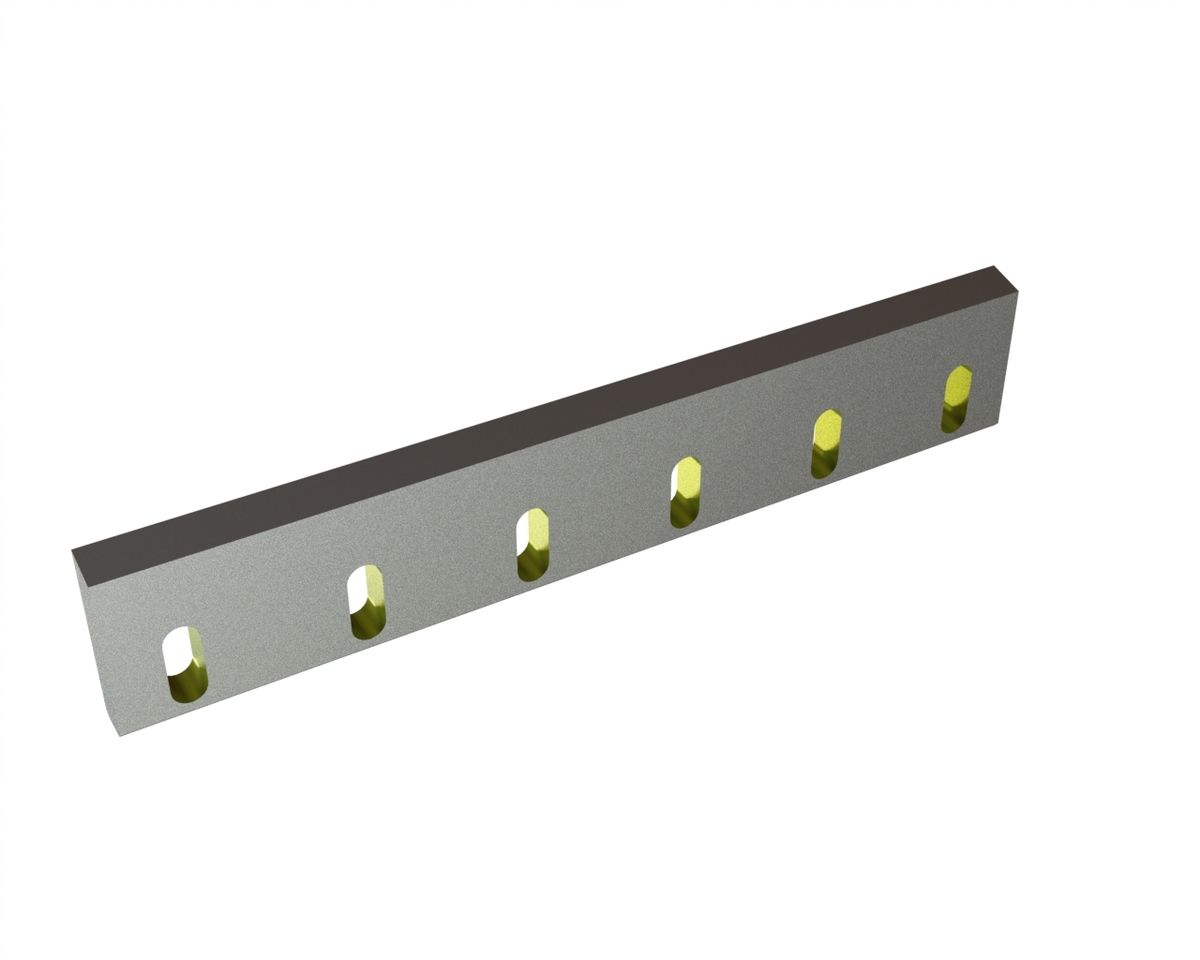

Stator knife 520x96x22 Eco Line for Heinrich Dreher Maschinenbau

Stator knife 520x96x22 Eco Line

6 long slots, edge 75°, X-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SMDR0520-X03-E

Order now
delivery time on request
Detailed description

Stator knife SMDR0520-X03-E by CUTMETALL for recycling machines by Dreher Maschinenbau.



Compatibility with machines:

For cutting millses and granulators by the manufacturer Dreher Maschinenbau the stator knife is excellently fitting.



Cutting performance and durability:

The wear and tear behaviour and thus also the service life can be influenced by the material and the cutting geometry. This means that the performance can be well customised to the application area.

In the X-version, the stator knife is made of tool steel, which is our standard variation in most applications. It is characterised by a medium hardness.

Here we offer you a suitable combination of insensitivity to wear and tear and toughness at the same time.

Due to the through-hardening process, there is a uniform hardness from the edge layer to the core. This ensures persistent wear over the tool life of the stator knife.

To avoid breakage and machine damage, it is important not to armour or weld on this type, as it will significantly weaken the structure.



General characteristics:

This stator knife is 520mm long, 96mm wide and 22mm high.

The inclination of the cutting edge is 75°.

This Eco Line stator knife is reliable, can get the job done and is also price-competitive in comparison to our Premium Line.

Technical specifications
suitable to manufacturer
Heinrich Dreher Maschinenbau
production line
Eco Line = CUTMETALL foreign production
knife features
medium wear / medium toughness
article group
stator knife | bed knife | static knife
length
520.00
width
96.00
height
22.00
weight in kg
6.90
material | hardness
Cr12MoV | 57-59 HRC
