Stator knife 589x100x22 Eco Line for Herbold Meckesheim GmbH Herbold SMS 80/120

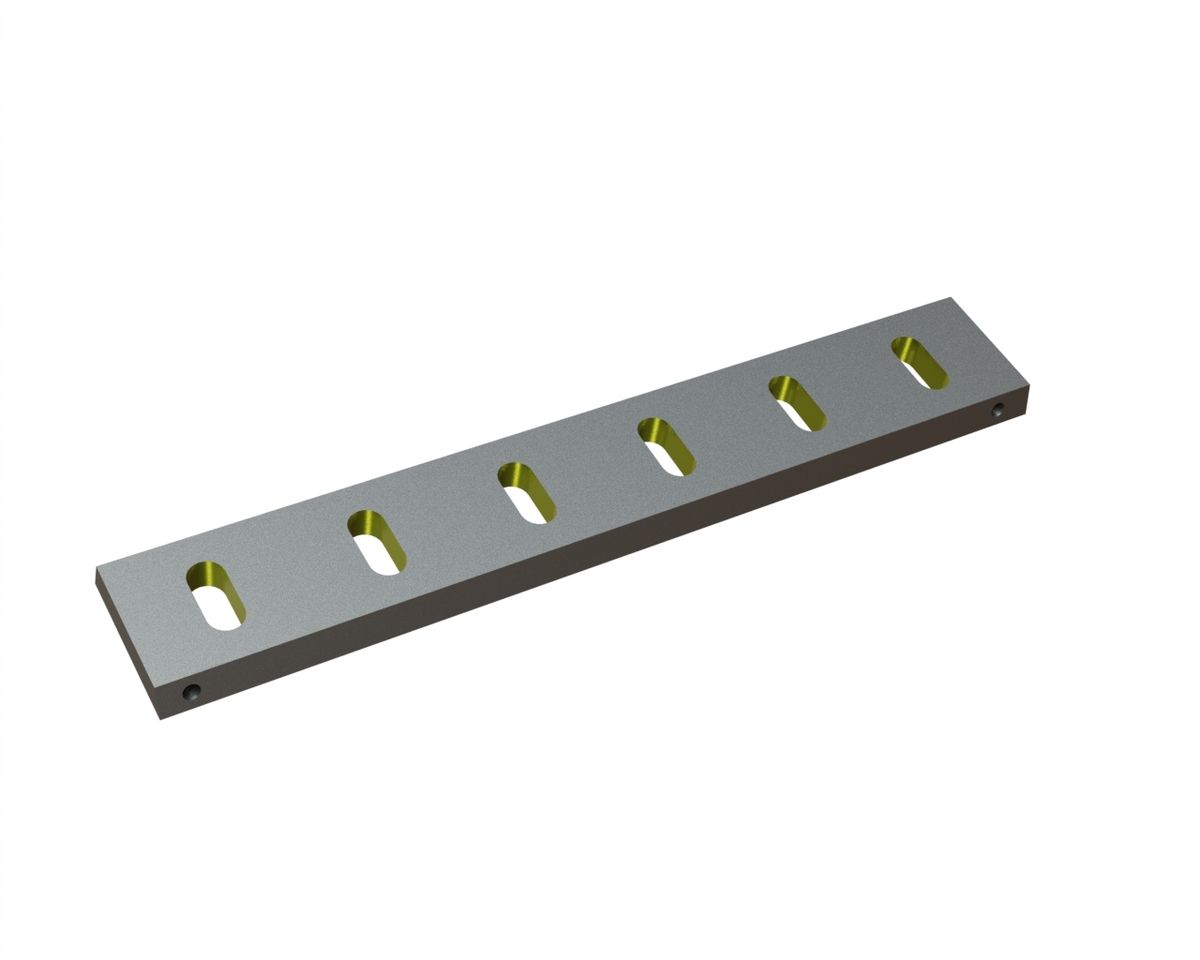

Stator knife 589x100x22 Eco Line

6 long slots, edge 75°, X-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SMHD0589-X02-E

Order now
Currently 3 in stock
Detailed description

Stator knife SMHD0589-X02-E from CUTMETALL for crushing machines from Herbold Meckesheim



Compatibility with machines:

This stator knife is to be installed in the Herbold SMS and Herbold SMS 80/120 model series from Herbold Meckesheim.



Cutting performance and durability:

The shape and the material used for constructing have a significant impact on the resistance and durability.

The item presented is made of tool steel in the X-variation, which is our standard option for most areas of application. The hardness of this stator knife is in the medium range.

This combines both toughness and wear insensitivity in a balanced ratio.

Due to the through-hardening process, there is a uniform hardness from the edge layer to the core. This ensures persistent wear over the tool life of the stator knife.

To avoid breakage and machine damage, it is important not to armour or weld on this type, as it will significantly weaken the structure.



General characteristics:

The following measures are available: 589mm length, 100mm width, 22mm height.

Its cutting edge is inclined at 75°.

As the stator knife is part of our Eco Line, this component is a cost-effective alternative to the Premium Line.



Field of application:

Apart from a broad range of break down applications, the stator knife optimally processes the subsequent input materials:

  • Foils
  • Plastic
  • Canisters
  • Barrels
  • Bumpers
  • Thinwanned tubes
  • Injection molding waste
  • Profiles
  • Stancing grids
  • Foams
  • Deep-drawn parts
  • Pre-shredded tubes
  • Bottle crates



Building on our extensive knowledge of shredding machines we would like to support you choosing the ideal product to meet your needs. Therefore, do not hesitate to contact us! Our experts of the CUTMETALL team will support you make the optimum selection to get the job done by determining your particular needs in a personal meeting.

Technical specifications
suitable to manufacturer
Herbold Meckesheim GmbH
suitable to machine
Herbold SMS Herbold SMS 60/120 Herbold SMS 80/120
production line
Eco Line = CUTMETALL foreign production
knife features
medium wear / medium toughness
article group
stator knife | bed knife | static knife
length
589.00
width
100.00
height
22.00
weight in kg
8.70
material | hardness
Cr12MoV | 57-59 HRC
