Stator knife 769x77x22 Eco Line

Stator knife SMTR0769-X00-E by CUTMETALL for crushing machines by Tria.

Compatibility with machines:

Cutting performance and durability:

Through the use of particular materials and the variance in the cutting geometry, the product can be configured to the application area in terms of throughput and longevity.

This X-option stator knife is made of tool steel and corresponds to the standard version in most application scenarios. Therefore, it has a medium hardness.

Here you are offered a balanced relationship between insensitivity to wear and toughness simultaneously.

Spare parts of this variant are hardened throughout, which means that this hardness remains persistent from the edge to the core. Due to that the wear is even in relation to its tool life.

We emphasise that this variation should not be armoured or welded on. This has a negative impact on the material structure of the stator knife, which can subsequently lead to breakage and machine damage.

General characteristics:

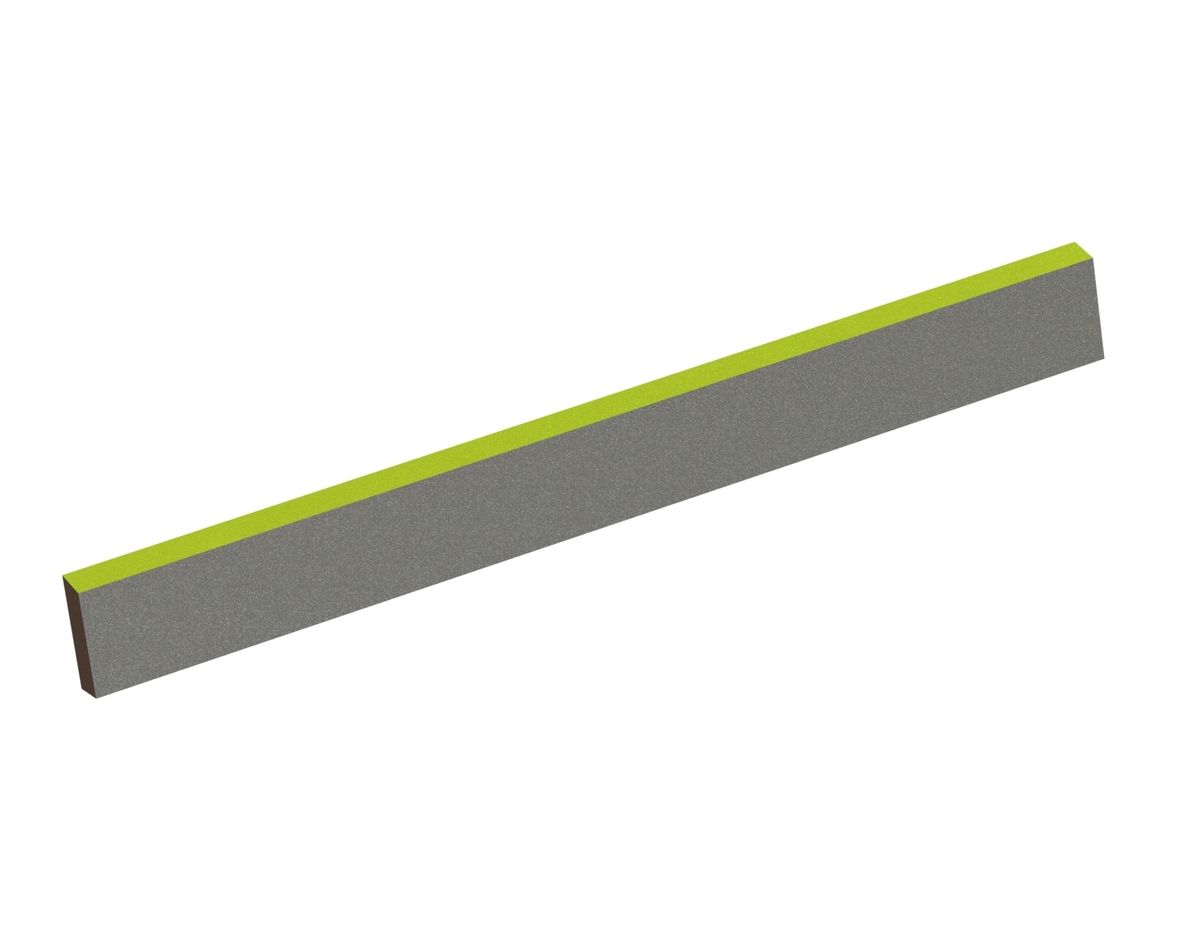

This stator knife is 773.5mm long, 118mm wide and 25mm high.

The inclination of the cutting edge is 75°.

As the stator knife is part of our Eco Line, this cutting tool is a cost-effective alternative to the Premium Line.
