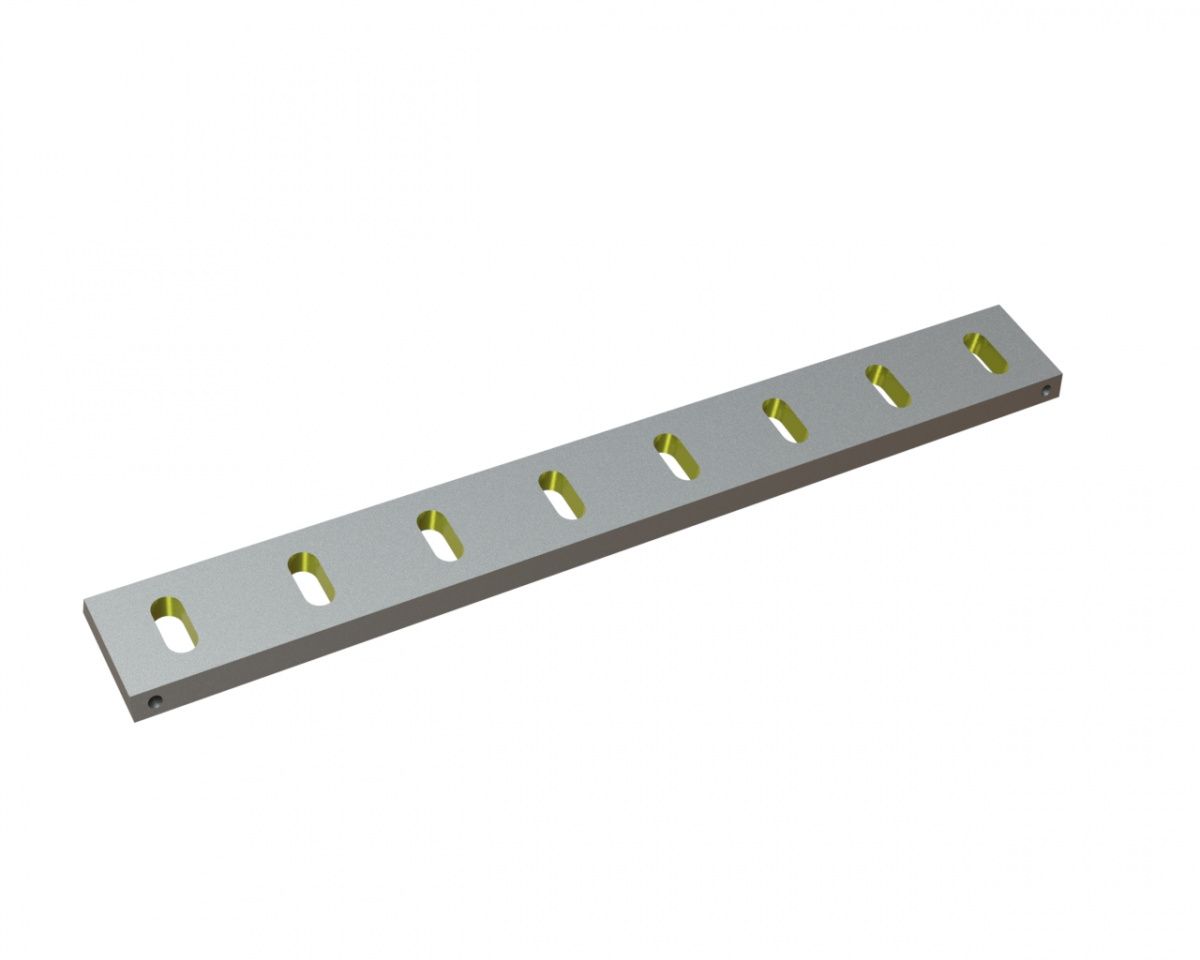

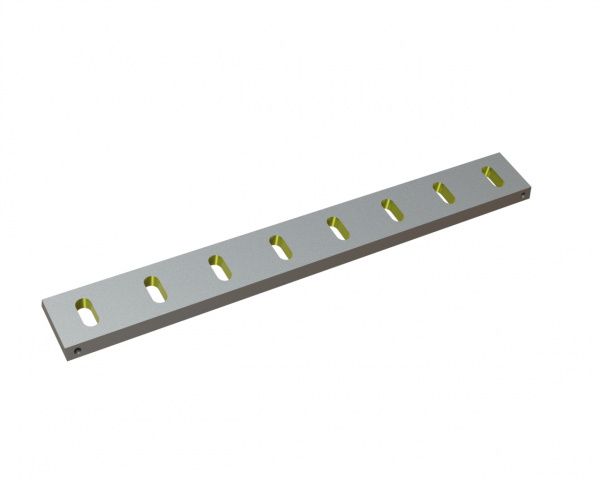

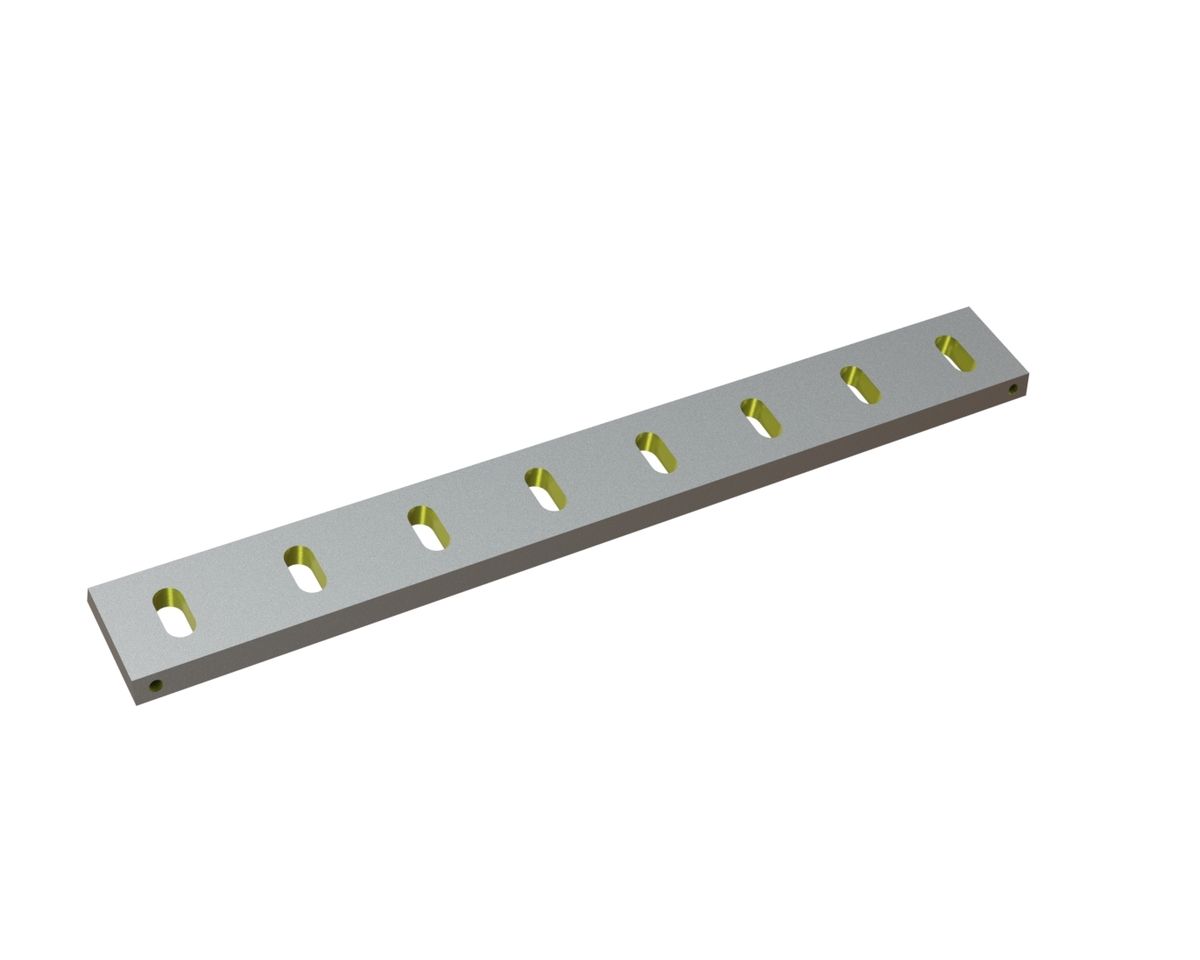

Stator knife 795x100x22 Eco Line

Stator knife SMHD0795-X00-E by CUTMETALL for recycling machines by Herbold Meckesheim.

Compatibility with machines:

Cutting performance and durability:

Through the use of particular materials and varying the cutting geometry, the item can be matched to the break down application in terms of throughput and knife life.

In the X-version, this stator knife is made of tool steel, which is our standard variant in most applications. It is identified by a medium hardness.

Here we offer you a suitable combination of insensitivity to wear and toughness at the same time.

Spare parts of this option are hardened throughout, which means that this hardness remains persistent from the edge to the core. Due to that the wear is homogenous in relation to its life span.

We emphasise that this variation should not be armoured or welded on. This has a negative impact on the material structure of the stator knife, which can subsequently lead to breakage and machine damage.

General characteristics:

The measures of the stator knife are 795mm long, 100mm wide and 22mm high.

The inclination of the cutting edge is 75°.

Since the stator knife is part of our Eco Line, the component offers a favourable alternative to the Premium Line.

Field of application:

The stator knife is ideal for a wide variety of application areas. For instance, the following materials can be processed with it:

• Foils
• Plastic
• Canisters
• Barrels
• Bumpers
• Thinwanned tubes
• Injection molding waste
• Profiles
• Stancing grids
• Foams
• Deep-drawn parts
• Pre-shredded tubes
• Bottle crates

If you need personal consulting in view of such a comprehensive range of break down applications, please never hesitate to contact us at any time! With the extensive expertise on shredding machines, our CUTMETALL team will help you choosing the optimum solution for your specific needs.
