Stator knife 818x100x20 Eco Line for Herbold Meckesheim GmbH Herbold F+Z 5/800

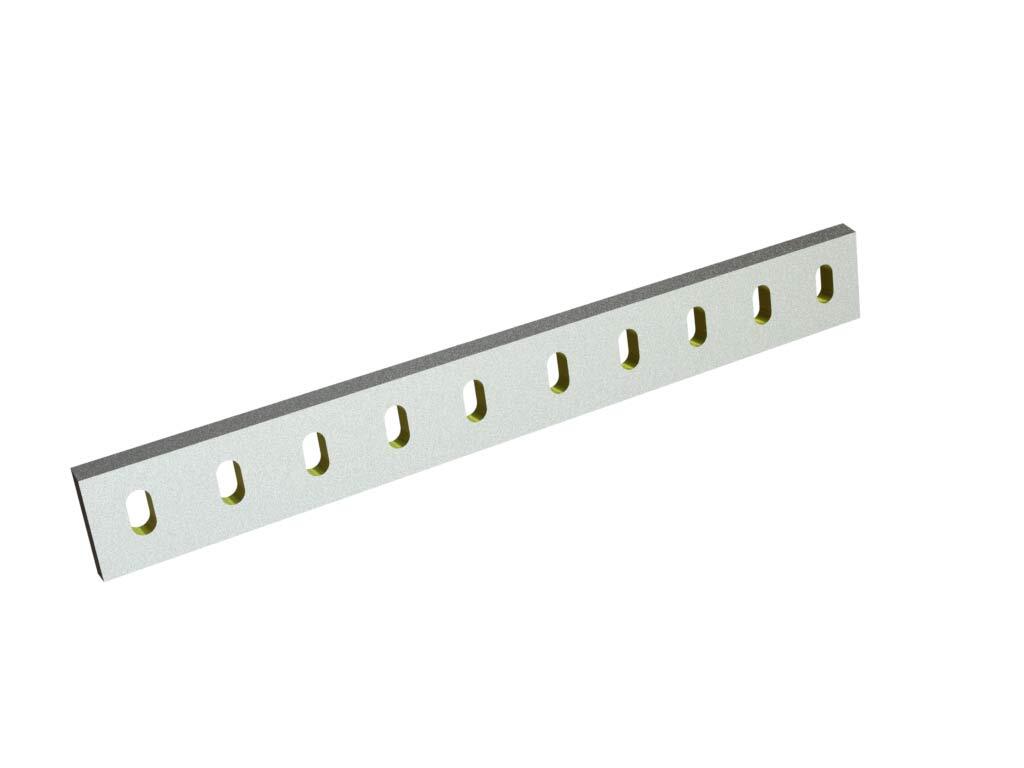

Stator knife 818x100x20 Eco Line

10 long slot, blade 75°, Y-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SMHD0818-Y00-E

Order now
delivery time on request
Detailed description

Stator knife SMHD0818-Y00-E by CUTMETALL for crushing machines by Herbold Meckesheim.



Compatibility with machines:

This component is perfectly suitable for cutting millses and granulators from Herbold Meckesheim.



Cutting performance and durability:

This item can be configured to the break down application, depending on the different materials and varying shape.

Knives made in this Y-version will extend the durability of your cutting tool. Due to the hardness the susceptibility to impurities is higher, which makes it easier to fracture.

Cutting tools of this variant are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is homogenous in relation to its tool life.

However, this option must not be armoured or welded on, as it negatively influences the structure of the spare parts. Subsequently, fractures and machine damage are possible.



General characteristics:

The stator knife is 818mm long, 100mm wide and 20mm high.

Its cutting edge is inclined at 75°.

Since the stator knife is part of our Eco Line, the spare part offers a favourable alternative to the Premium Line.

Technical specifications
suitable to manufacturer
Herbold Meckesheim GmbH
suitable to machine
Herbold F+Z 5/800
production line
Eco Line = CUTMETALL foreign production
knife features
lower wear / lower toughness
article group
stator knife | bed knife | static knife
length
818.00
width
100.00
height
20.00
weight in kg
11.00
material | hardness
Cr12MoV | 60-62 HRC
