stator knives 698x85x18, 4xM10, cutting edge on for Zerma | AMIS Zerma GSE 500/700

stator knives 698x85x18, 4xM10, cutting edge on

both sides 75°, 6, long holes 18x38, GSC S10
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SMZM0698-X00

Order now
delivery time on request
Detailed description

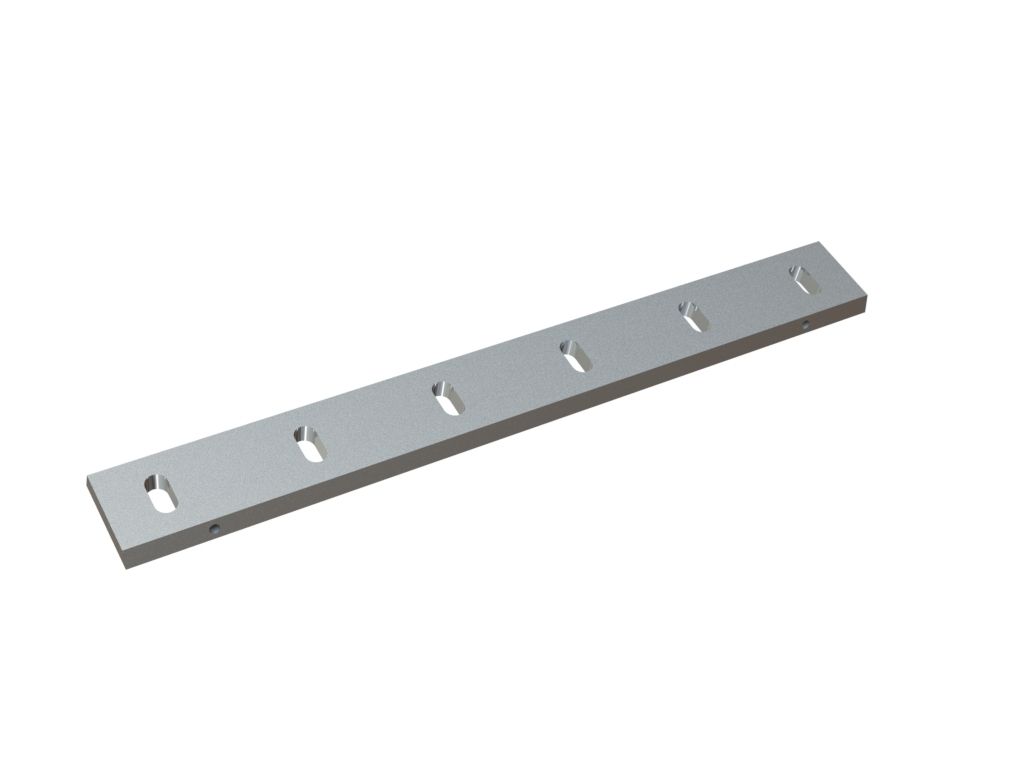

Stator knife SMZM0698-X00 from CUTMETALL for shredding machines from Zerma (Amis)



Compatibility with machines:

This stator knife can be used for the cutting mills and the granulator of the Zerma (Amis) company.



Cutting performance and durability:

Through the use of particular materials and varying the shape, the component can be customised to the break down application in terms of throughput and longevity.

The item shown is made of tool steel in the X-variant, which is our standard version for most application areas. The hardness of this stator knife is in the medium range.

Here you are offered a balanced relationship between resistance to wear and toughness simultaneously.

Items of this variation are hardened throughout, which means that this hardness remains the same from the edge to the core. Due to that the wear is homogenous in relation to its life cycle.

Hardfacing or welding on this option should be avoided, as the structure will otherwise be severely weakened. This can lead to breakages and machine damage.



General characteristics:

This spare part measures 698mm in length, 85mm in width and 18mm in height.

The inclination of the cutting edge is 75°.

As this stator knife belongs to the Premium Line, the components presented is exclusively made in German manufacturing.

Technical specifications
suitable to manufacturer
Zerma | AMIS Amis | Zerma
suitable to machine
Zerma GSE 500/700
knife features
medium wear / medium toughness
article group
stator knife | bed knife | static knife
length
698.00
width
85.00
height
18.00
weight in kg
7.32
material | hardness
AISI D2 | DIN 1.2379 | 57-59 HRC
